How do I connect my Panasonic PBX?

First, prepare your Panasonic PBX.

1. Start the Panasonic Unified Maintenance Console.
2. Click Connect, verify that you will be doing so at the INSTALLER level and choose the method of connection:
3. Provide the IP address of the MPR card and the password of the INSTALLER Level.
4. Click Connect.

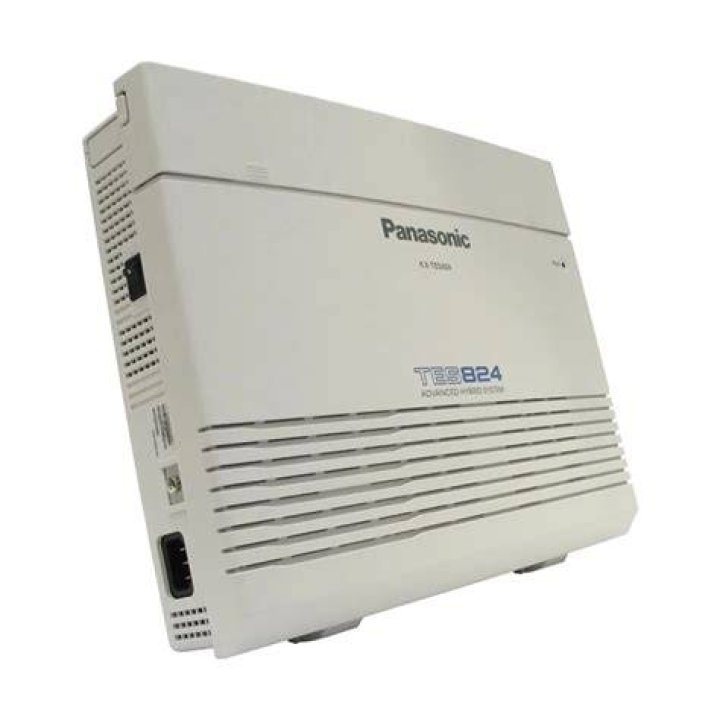

What is panasonic KX-TES824?

The KX-TES824 Advanced Hybrid PBX System can cost effectively support all your personal and business communication needs. The system supports 3 outside (CO) lines and 8 extensions – all built-in so you can use the system straight out of the box. * 8 of the extensions are ports used for Single Line Telephones.

How do you program a KX T7730?

How to Program a Panasonic KX T7730

1. Locate the program and auto-store button on your telephone.
2. Program your outgoing line preference, i.e., the line you prefer to seize when you go off hook.
3. Program your incoming line preference, i.e., the line you prefer to answer when you go off hook.

How do I turn on Caller ID on my Panasonic KX-TES824?

Press the AUTO DIAL button. Press any button with a light on it, in the Left column, that you want to be a COMMON CALLER ID SELECTION button. (Don’t use outside lines) Dial 97. Press the AUTO DIAL button.

How do I connect to PBX?

Connect your PBX to the local network, and connect telephony lines to the PBX.

1. Connect your PBX to the network. Connect one end of an Ethernet cable to the LAN port of your PBX, and the other end to any port of your company’s LAN switch/router.
2. Power on your PBX.
3. Connect your PBX to the telephony lines.

How do you program a PBX system?

How to Program a PBX

1. Log in to the PBX administration portal with a computer and connectivity software.
2. Set up the dial plan for the system.
3. Configure the system parameters and feature access codes.
4. Set up Class of Restrictions and Class of service tables.
5. Configure the trunks and outbound routing.

What is a CO line?

A CO line refers to an incoming line provided to you by your local phone company. • Stations. A station refers to one “Telephone” station coming from your phone system. • Port, Ports. A port refers to a single interface connection with your phone system.

What does PBX mean for phones?

Private Branch eXchange
PBX stands for Private Branch eXchange that essentially describes the various enterprise-grade private telephone networks that businesses use to connect to the wider network. In short: a business phone.

How do I program a PBX?

How do I install KX TE maintenance console?

1. 3.1 Installing KX-TE Maintenance Console.
2. Installing KX-TE Maintenance Console.
3. Notes.
4. Insert the included CD-ROM into the CD-ROM drive.
5. Click Maintenance Console.
6. Double-click the setup file to run the installer. ( Its.
7. Follow the on-screen instructions provided by the.
8. Select the appropriate model code. ( The model.
